13-Alarm System


Alarms can be created by comparing the data coming from the devices to the system with the determined constant or other variables in the system.


Alarms can be grouped. There are 100 alarm groups.

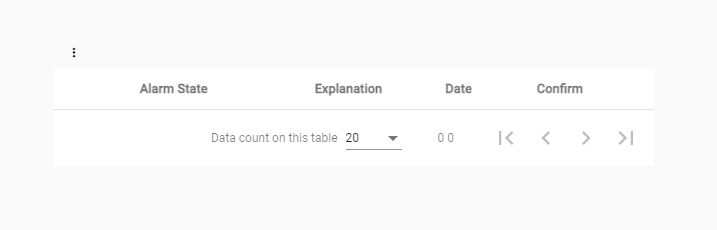

Alarms are displayed on the dashboards with the alarm widget. By selecting the desired group, alarms are displayed. All alarms can be listed by selecting the group.


Descriptions set for alarms are displayed in the alarm widget and transmitted as a telegram message.


Telegram settings will be explained later.



We can reach the setting page with the alarm system button from the menu.



There are two options.

Normal Alarm :


It provides an alarm to be created by comparing the determined fixed values ​​with the variables.


By clicking the normal alarm button, we can open the setting window.




We can open the alarm adding window with the add alarm button.




Condition Data : comparison value


Select condition : Large, small, equal comparison selection


Second Condition Data : second comparison value


Select Second condition : Selection of greater , lesser , equal comparison


Select alarm group : alarm group selection


Select device : Here is the device list we added to the system. We can select the device we want to use from the list.

Select variable: After device selection; device-related variables are listed here. We can choose the variable to be used for the alarm operation.


ChatId : The id for the Telegram message system.

Explanation : Alarm explanation message



We can complete the alarm adding process with the Create button.




We can add other alarms in the same way.




Device compare alarm :

It provides an alarm by comparing two variables in the system.


We can reach the setting page with the Device compare alarm button.




Add alarm page opens with the Add alarm compare button.





Select condition : Large, small, equal comparison selection


Select alarm group : alarm group selection


Select device : Here is the device list we added to the system. We can select the device we want to use from the list.


Select variable: After device selection; device-related variables are listed here. We can choose the variable to be used for the alarm operation.


Select device for condition : Here is the device list we added to the system. We can select the device we want to use from the list.


Select variablefor condition : After device selection; device-related variables are listed here. We can select the variable to be compared.


ChatId : The id for the Telegram message system.

Explanation : Alarm explanation message



We can complete the alarm adding process with the Create button.



We can add other alarms in the same way.



In order to display alarms on the dashboard, let's open the setting window by selecting the alarm widget from the menu.



Let's select the alarm group we want to be displayed.




We can add the alarm widget to our system with the Create button.




Active alarms will be displayed in red in the alarm widget.




When we confirm the alarm with the Confirm button, the alarm will be displayed in green.




If the alarm is not active, it will not be displayed.


There is a reporting system for alarms. It will be explained later.
